Nelson SR150 x 24 Degree Part Circle - Flanged Connection - 8463-224

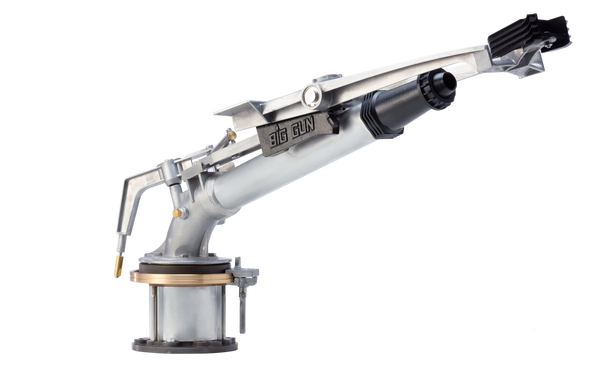

Nelson SR150 24 Degree Part-Circle Big Gun Sprinkler - Flanged Connection (8463-224)

The 8463-224 is a Nelson SR150 Series part-circle big gun sprinkler with a 24-degree trajectory and flanged connection. Built for high-volume agricultural irrigation, the SR150 delivers long-range, uniform water distribution for center pivots, traveler systems, and solid-set applications.

The adjustable part-circle pattern provides precise directional coverage and helps keep water off roads, structures, and field edges. The flanged connection provides a secure, vibration-resistant mount for reliable high-pressure operation across large field areas.

Performance and Specifications:

• Model: 8463-224
• Brand: Nelson
• Series: SR150
• Trajectory: 24 Degrees
• Coverage Pattern: Adjustable part circle
• Connection Type: Flanged
• Flow Rate: 90-630 GPM (20-143 m³/hr)
• Pressure: 50-120 PSI (3.5-8.25 bar)
• Applications: Center pivot, traveler, and solid-set agricultural irrigation

Nozzle is not included - order the correct nozzle separately.

Also available: Additional Nelson SR150 full-circle and part-circle configurations.
